Product Description

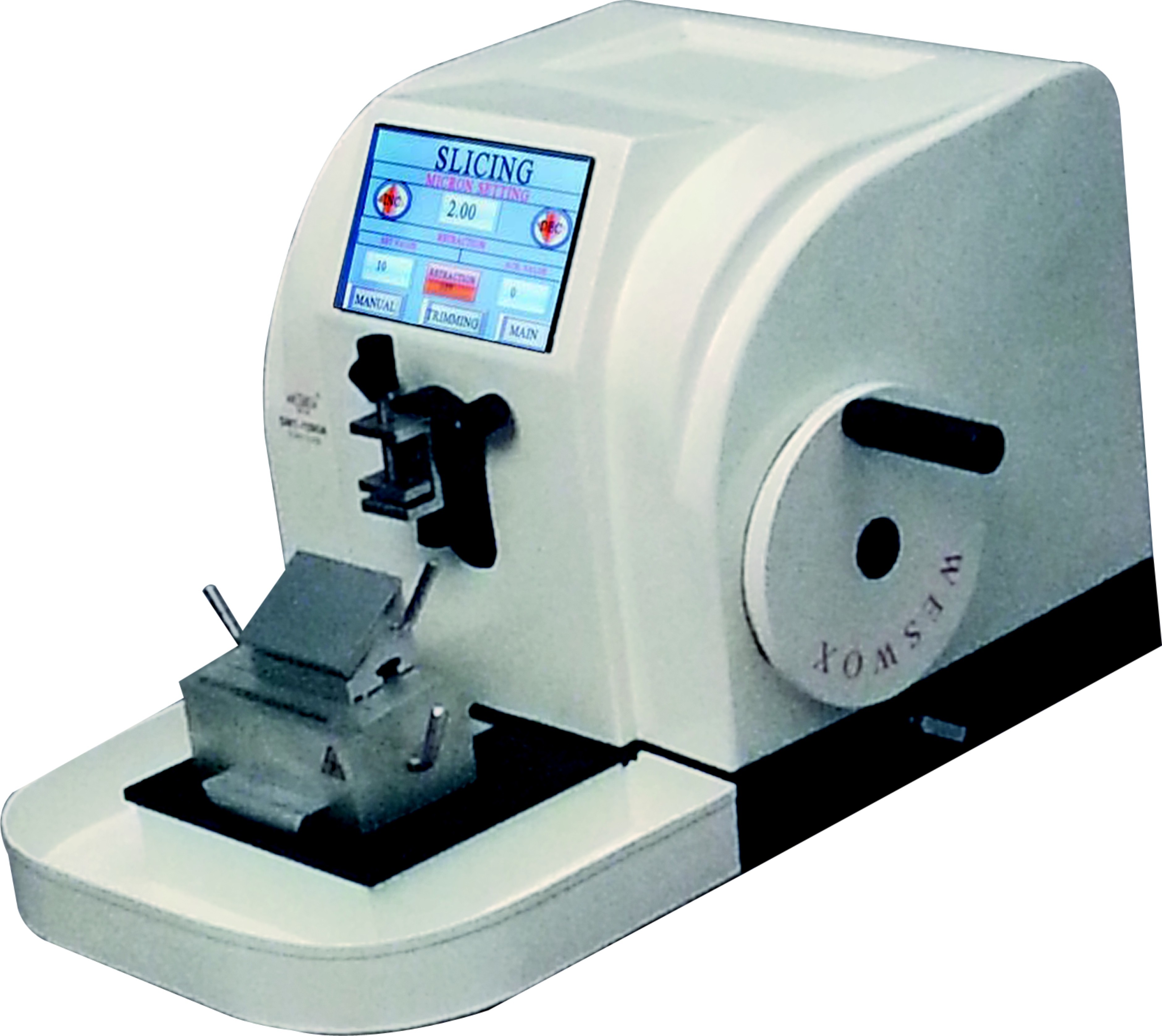

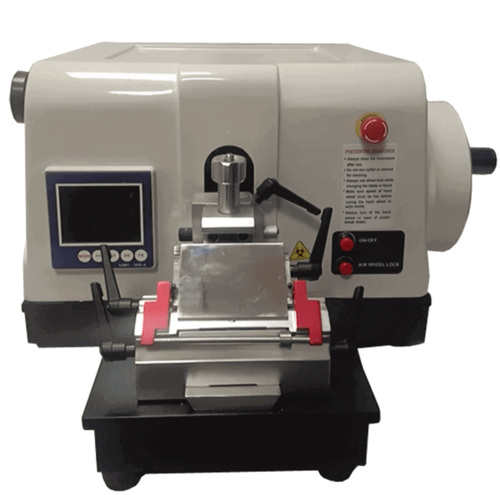

Weswox  Fully Automatic Microtome Latest Model

SPECIAL FEATURES :

Rust proof construction.

Lockable hand wheel at any position allowing change of blade/specimen easier and safe.

Lateral knife adjustment to ensure that the entire width of the blade is used without releasing the blade clamping mechanism.

Large storage capacity on the top of the instrument for easy access of tools.

Finger protection guard to protect the used from any injuries caused due to blade.

Robust and stable base plate for max/imum stability to the microtome.

Ergonomic and user friendly design.

Section Waste tray to collect section waste and is easily removable for cleaning purposes.

LCD Display with Feather Touch Keypad.

Slicing/Trimming Mode.

TOUCH Fast Forward/Backward Function.

TOUCH Increase/Decrease Section Thickness.

TOUCH Section Counter/Section thickness display.

Motorized Feed & Coarse Drive in two speeds.

Sectioning Mode: Semi-automatic, Fully automatic.

TECHNICAL SPECIFICATIONS:

Section Thickness Range : 0.5m-100m

Setting Values: 0.5m-2m in 0.5m increments.

    2 m-20 m in 1m increments

    20 m-100 m in 5m increments.

Trimming Thickness Range : 1 m-600m

Setting Values: 1 m-10 m in 1m increments.

10m-20m in 2 m increments

20m-100m in 5 m increments.

100m-600m in 10 m increments.

Minimum Setting value: 0.5m

Object feed: 30mm

Vertical Stroke: 68mm

Specimen horizontal feed: 30mm

Max. Specimen Size: 50X50mm

Sectioning speed range: Adjustable

Operation: Semi-automatic, Fully automatic.

Nominal Voltage: 220V, 50Hz/110V, 60Hz

Other features are mentioned in our catalogue
