Product Description

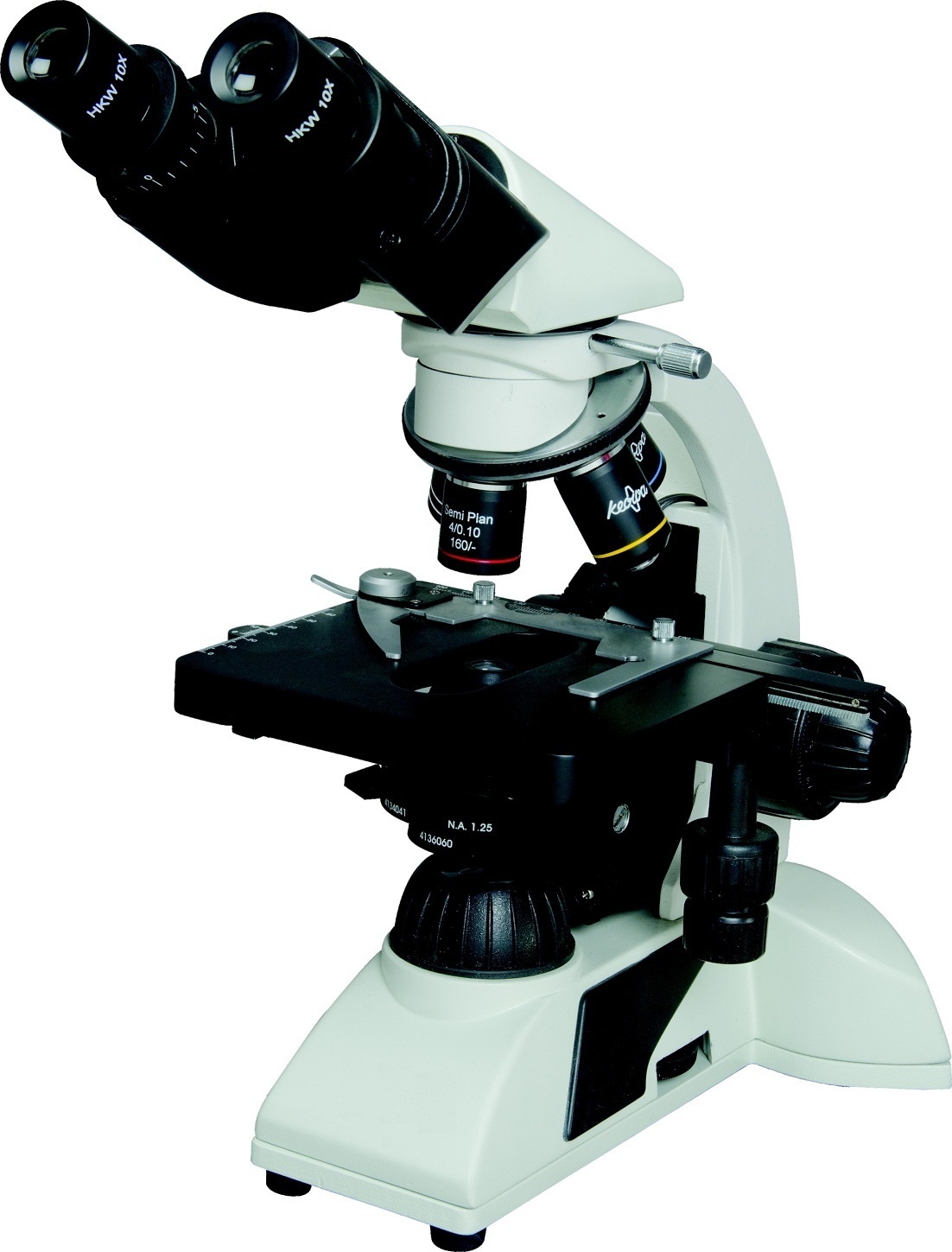

Weswox Advance Research Binocular Microscope

TECHNICAL SPECIFICATIONS:

STAND: Stable & sturdy C shaped stand with well-contoured modular base, corrosion resistant paint and heat resistant pads.

VIEWING HEAD: Siedentopf Binocular tube, inclined at 30° rotatable through 360° with IPD 55-75 mm and Dioptric adjustment on both eyepieces. Anti fungus treated, anti-reflection coated prism, compensating.

EYEPIECES: Eyepiece WF 10x FN 18/22mm paired with eye guards.

NOSEPIECE: Low friction & fully parafocal Quadruple Revolving inward facing nosepiece (Ball Bearing type).

OBJECTIVES: KEOWA VA series All New High Definition DIN plan corrected Achromatic, anti fungus treated parafocal objectives:

  • PLAN ACHROMAT 4x
  • PLAN ACHROMAT 10x.
  • PLAN ACHROMAT 40x(SL)
  • PLAN ACHROMAT 100x (SL, Oil)/1.25.

STAGE: Double layer graduated hard coated mechanical rectangular stage size 142 x 133mm cross travel 75 (X) x 50 (Y) mm on ball bearing with right hand co-axial low drive controls & spring clip double specimen holder.

FOCUSING MODULE: Ergonomic low position co-axial coarse and fine focusing system on ball bearing guide ways.  Tension adjustment ring provided. Upper limit stopper to prevent the specimen in high magnification observation.

CONDENSER: Moveable ABBE Condenser, NA 1.25 with aspheric lens. IRIS DIAPHRAGM focusable with rack & pinion. Special day light blue filter in holder.

ILLUMINATION: Illumination, long life LED lamp with variable illumination control.

POWER: Power Input 220V, 50/60 Hz or 110v AC as per ISO 9001 & CE standards & International Build Quality.

PACKAGING CONTENTS : The microscope is packed inside a STYROFOAM box with Dust Cover.

ACCESSORIES : Styrofoam molded box
