Research Polarimeter (220mm) Research Polarimeter (220mm)
Research Polarimeter (220mm)
Research Polarimeter (220mm)

Research Polarimeter (220mm)

Product Details:

X

Product Description

TECHNICAL SPECIFICATIONS:

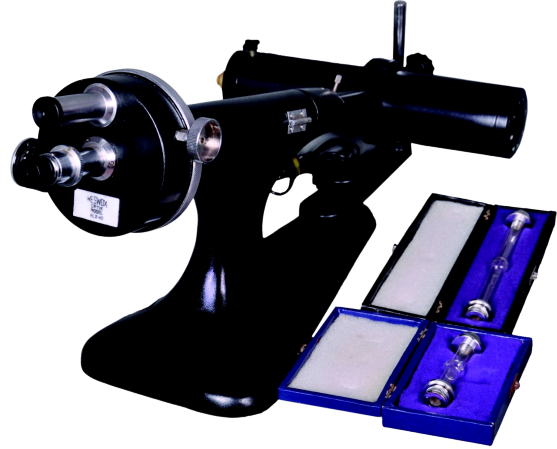

A complete and latest polarimeter equipped with finest optical components and designed to accept observation tubes upto 220mm length. Its improved rotating half shadow system at the front ensures perfect focus and clear defination during examination of all type of specimens. Its highly accurate glass scale is divided to read angular degrees and also carries sugar scale in I.S.S. Units. The angular scale from 0 to 360 degrees is subdivided to 1degree to enables direct reading to 0.05 and by estimation 0.02 degree. The sugar scale from 30 degree to 120 degree I.S.S. units enables direct reading to 0.01 and by estimating of 0.05 sugar degrees.

Supplied complete with two polarimeter tubes (100mm and 200mm)  in a sturdy box. Optional Sodium lamp with power supply for the above.

OPTIONAL ACCESSORIES:

  • Philips Sodium lamp 35W with transformer and power supply
  • Lamp casing for model HLX-20a
  • Sample holder 100mm
  • Sample holder 200mm
  • Sample holder 400mm
