Product Description

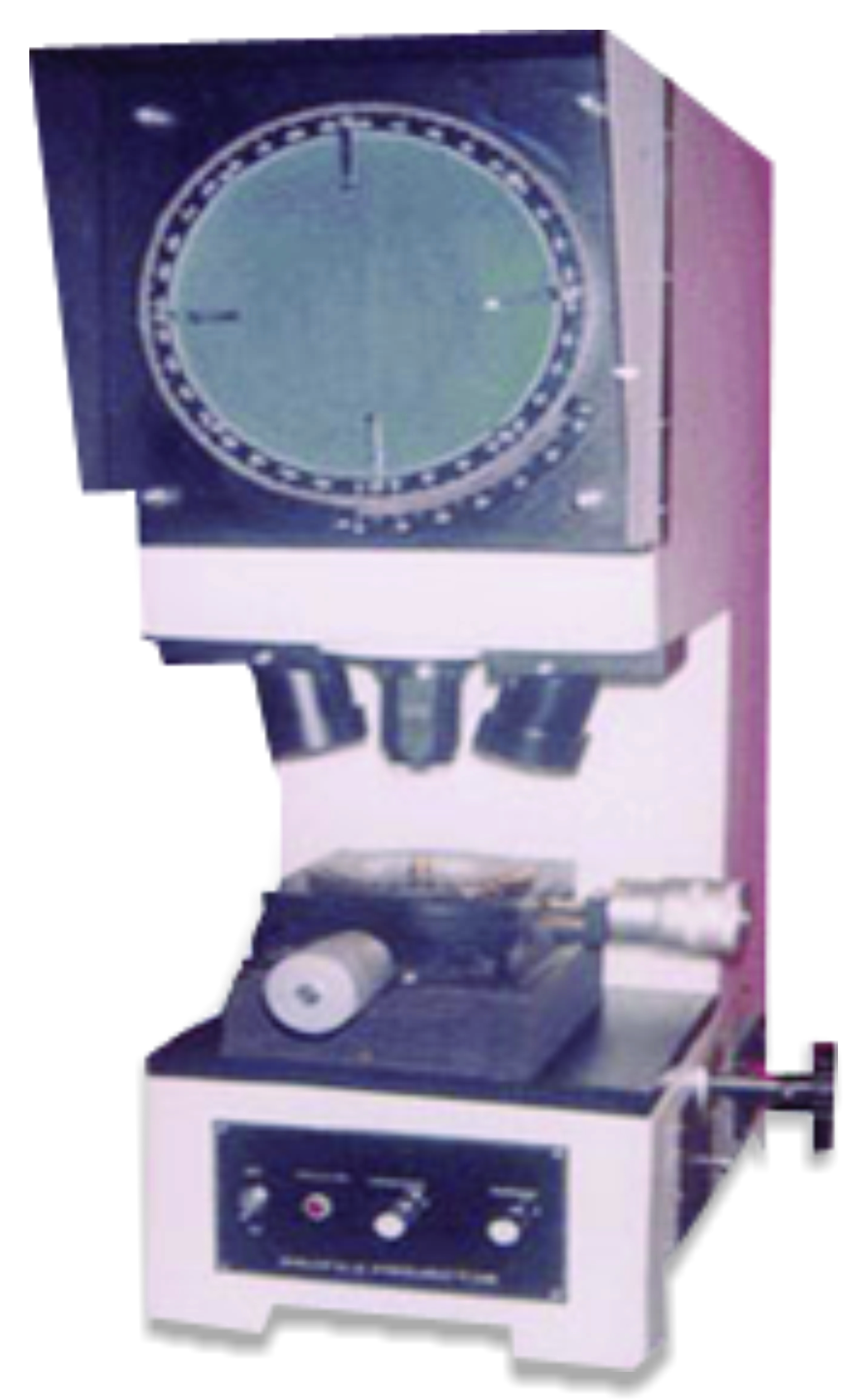

Industrial Grade is a Compact Light weight table top profile projector with easy operations 300mm diameter screen with 90º cross line and chart holders. Screen is graduated to 360º with vernier reading of 2 minutes.

Projection Light source with 24V/150W Halogen Lamp and for surface illumination, two adjustable reflector lamps 12V/100W each

Travel X-Y movement (Standard): 25x25mm.

Maximum size of object view: 28mm (dia).

Maximum Height of Object view: 70 mm (Under 10x magnification). Maximum Height of Object view: 75mm (Under 20x, 50x &100x). Micrometers (50mm Dia): 25 mm (L.C 0.01).  X-Y Bed Size: 150mm X 150mm. Standard Magnification: 10x

Optional Magnifications (at extra cost) :20x ,50x and 100x
