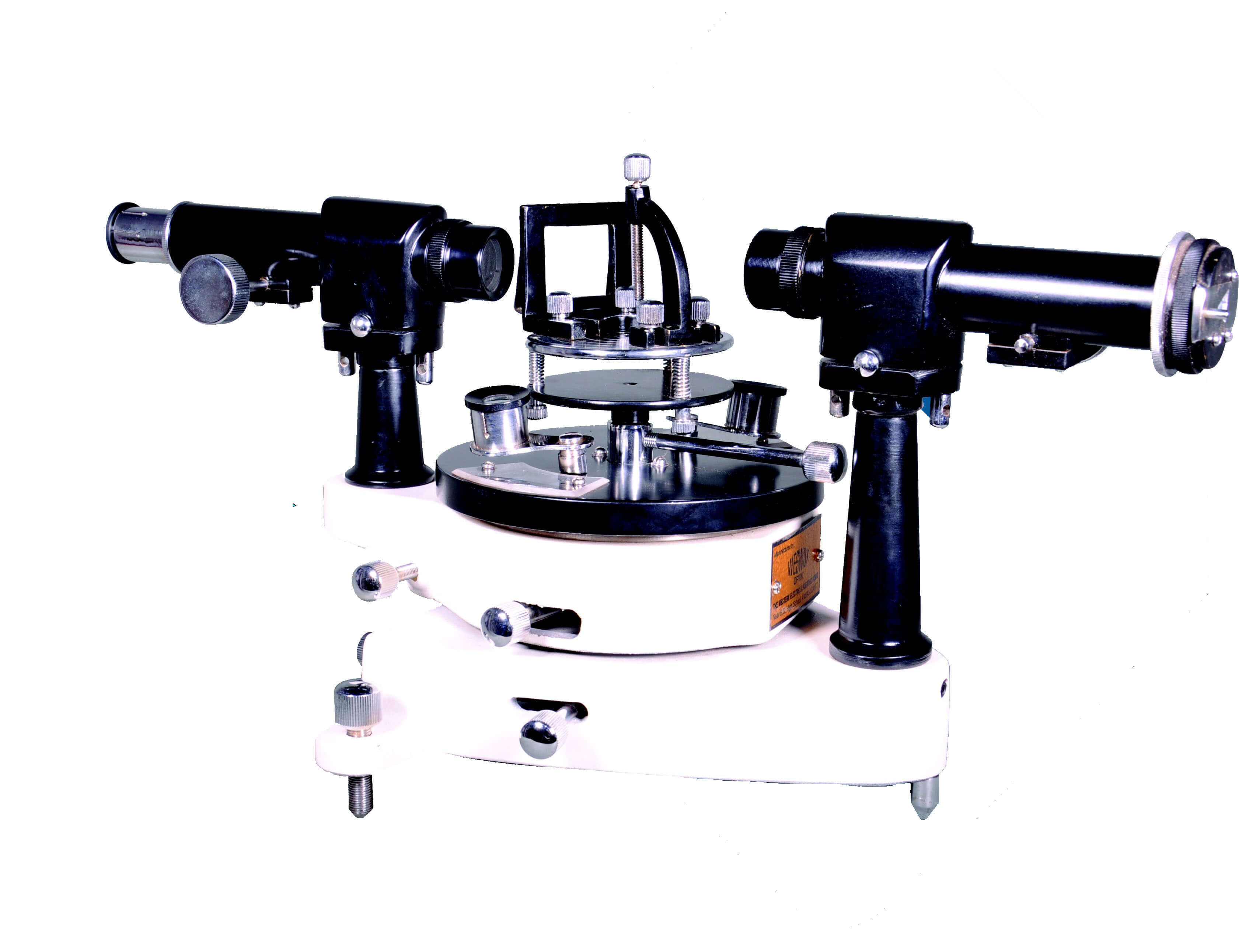

Precision Spectrometer Precision Spectrometer
Precision Spectrometer
Precision Spectrometer

Precision Spectrometer

Product Details:

X

Product Description

TECHNICAL SPECIFICATIONS:

DURABLE CONSTRUCTION : Heavy metallic casting provider a sturdy base fitted with Leveling Screws and carries the fixed collimator arm and a swinging Telescope arm.

ACCURATELY ADJUSTED TELESCOPE & COLLIMATOR TUBES Telescope & Collimator tubes are carried on sturdy machined pillars, which are accurately adjusted to make the axis of the telescope & collimator pass through the axis of the instruments.

Adjustment to the collimator & telescope tubes are provided for setting their optical axis at right angles to the vertical axis of the spectrometer. Both the Telescope & Collimator tubes are fitted with smooth rack & pinion adjustment.

STAINLESS  STEEL SLIT

Slit of the collimator is from Stainless Steel and the slit jaws are finished and ground with the utmost care and optically tested for accuracy of the edges. The two jaws are operated by knurled ring and move symmetrically from the centre and remain parallel at all openings.  A sliding Shutter is provided to increase or decrease the length of the slit.

CUSTOM PRISM : Prism Table with grating holder is provided with three leveling screws and is engraved with concentric lines to facilitate correct location of the prism. It may be raised or lowered & rotated independently of the verniers.

CALIBRATED SCALE

Scale is machine-divided in degrees or 1/3 degrees on a lifetime Stainless Steel Circle. A cover plate fully protects the scale from dust and carriers two transparent plastic protected windows for verniers. The scale circle is provided with slow & quick tangential movements being fixed  to the telescope arm. Accuracy of calibrations +.001%. Two verniers are provided reading to 1 minute of the Arc. (or 30 secs. if so specified).

FINEST QUALITY ACHROMATIC OPTICS-

The objectives are 1 clear aperture with 10x RAMSDEN Eyepiece fitted with cross line glass graticule to produce sharp spectral images.

PACKAGING : The instrument is furnished in epoxy finish with bright chrome plated parts with Dust Cover and a STYROFOAM molded pack, packed in wooden cabinet.
