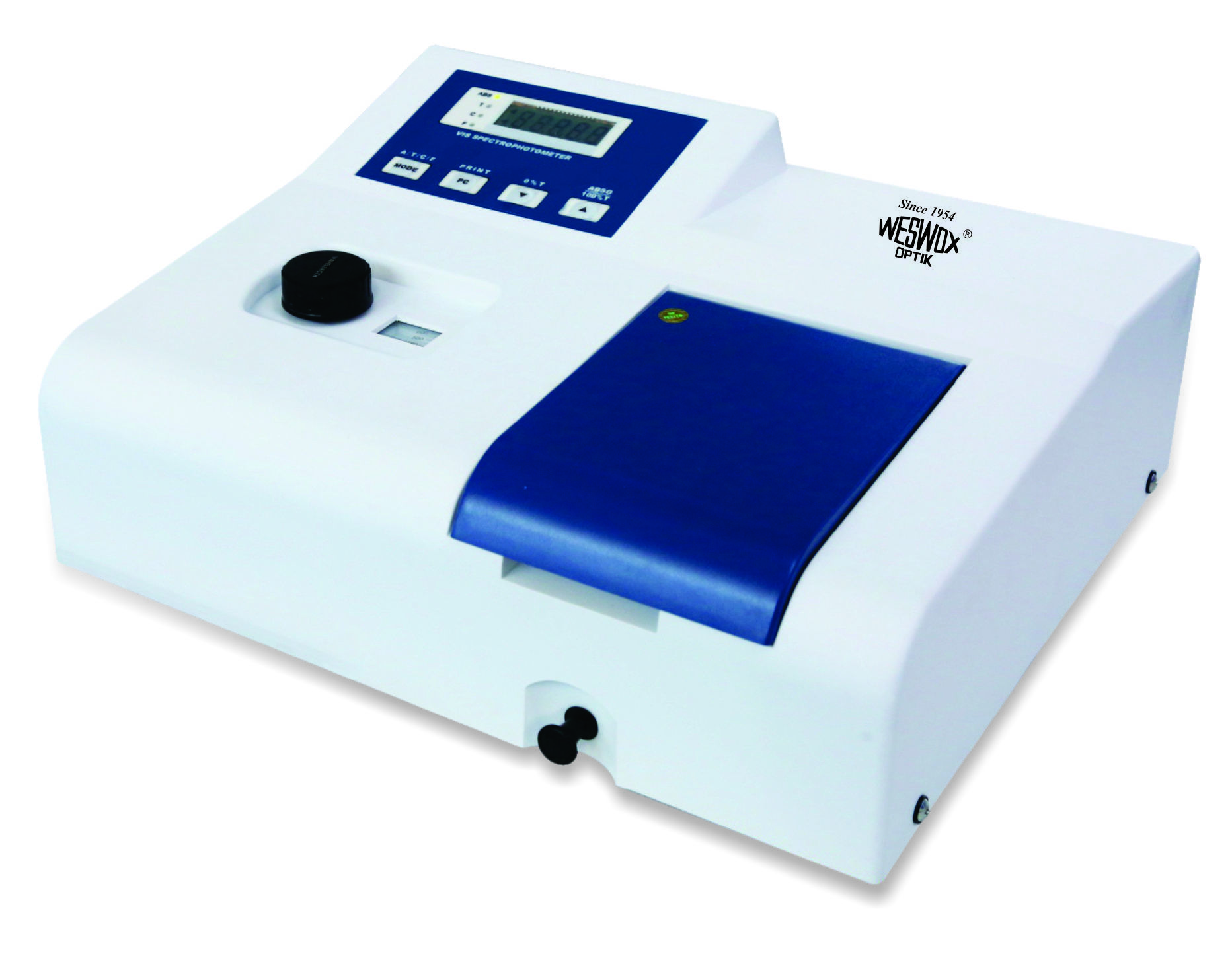

Microprocessor Single Beam Visible Spectrophotometer Microprocessor Single Beam Visible Spectrophotometer
Microprocessor Single Beam Visible Spectrophotometer
Microprocessor Single Beam Visible Spectrophotometer

Microprocessor Single Beam Visible Spectrophotometer

Product Details:

X

Product Description

FEATURES:

  • The Monochromator with a holographic flashing grating is used.
  • It has the advantage of high wavelength precision, good monochromator and low stray light.
  • A sample compartment is equipped with 50 mm cell holder.
  • Direct concentration read-out and concentration factor setting function.
  • Equipped with RS232 Port.

SPECIFICATIONS:

  • Optional SystemC-T Single Beam, Grating 1200lines/mm
  • Wavelength Range    -    320-1020nm
  • Spectral Bandwidth    -    2nm
  • Wavelength Interval 1nm
  • Wavelength Accuracy+2nm
  • Wavelength Repeatability<1nm
  • Photometric Accuracy+1%T
  • Photometric Repeatability0.5%T
  • Photometric Range  -   0-1.999A, 0-199.9%T
  • Stray Light-  <0.3%T@340nm
  • Stability  -  +0.004A/h @500nm
  • Display  -  4 LCD
  • Photometric Mode  -  T,A,C
  • Detector  - Si Photodiode
  • Light Source -  Tungsten lamp
  • Power -  AC (220V/50Hz)
  • Dimension  - (WxDxH) 450x520x320mm
  • Net Weight- 10kg
  • Output    - RS-232C port

STANDARD CONFIGURATION

  • Main Instrument1 no.
  • Operating Manual -  1 no.
  • Glass Cell 10mm4 no.
  • Dust Cover-  1 no.
  • Software CD-  1.no.
  • RS 232 Cable-  1 no.
