Product Description

FEATURE:-

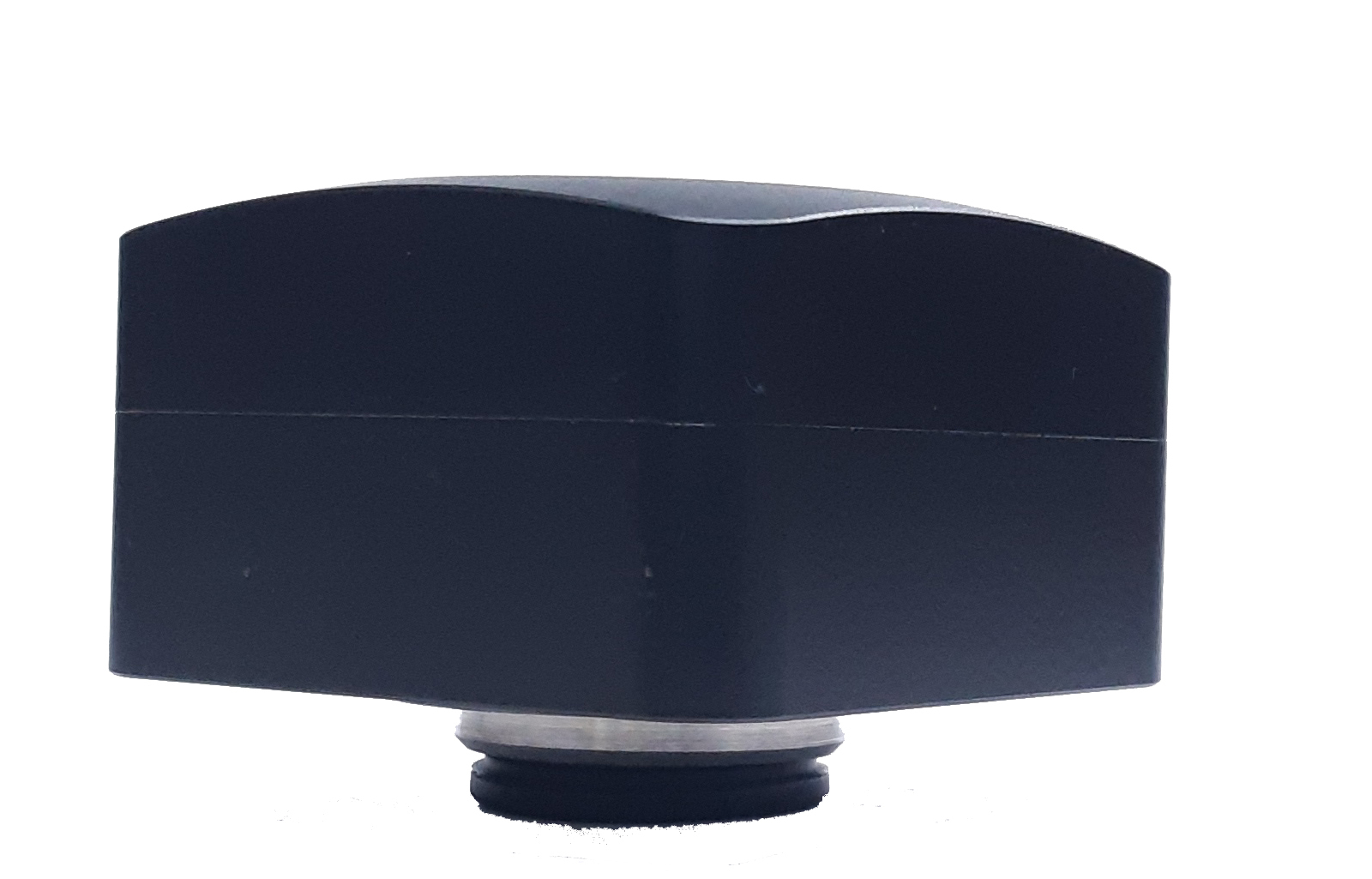

• Light weight compact imaging sensor with built in standard  Microscope adaptor that connects to almost every microscope.
• Plug in play design allow installation in minutes.
• Offer adjustable file sizes when capturing digital images.
• Smooth, live color preview on the computer display.
• Photographs of up to 12 mega pixels are possible.
• Wide range of high pixel resolution models to fit your budget & requirement.

TECHNICAL SPECIFICATIONS

Image Sensor           :  CMOS 5.0MP

Resolution               : 2592 X 1944 (5.17M Pixels).

Frame Rate             : 7.5 fps, 1280X960, 2.5 frames/sec @ 2592 X 1944.

Output Interface    : USB-2.0/3.0

Software                  : Preview, static capture, video capture.

System Required    : windows 2000, XP SP2/SP3, Vista; USB2.0 Port.

Application             : High resolution microscope imaging.

Mount                     : C/CS mount.

Mounting Tube      : 23mm.

Camera size            : 60mm diameter

Image File Type     : JPEG, PNG, BMP, TIF.

CAPTURE PRO SOFTWARE:

Routine Filters

Invert, Brightness, Contrast, Hue, Saturation, Blur. Noise removal, Gamma RGB, etc.

Edge Detection & Morphology Function

Laplacing, sobel, Kirsh, Skelotizing, pruning, histograme equalization, histogram smoothing etc.

Image Editing

Cut/Copy/Paste, selected copy by free hand AOL. Resize, Crop/Duplicate/restore, conversion to other format like BMP,JPG,TIF, Annotation like, free hand drawing, straight line, square, Circle, arrow, Text, highlighter etc, pointer, eraser.

View

Zoom in/Zoom out, rotation 90 ,180 ,27 , horizontal flip/vertical flip, Redo/Undo, Intensity histogram.

Image Processing

Background subtraction, contrast enhancement, boolean math, ADD,OR,XOR etc.

Report

Direct printout with original image tabulated results. Export to MS Office or Excel for further changes.


STANDARD ACCESSORIES:

1.USB Camera

2.0.5X reduction lens

3.Software CD

4.USB Cable
