Product Description

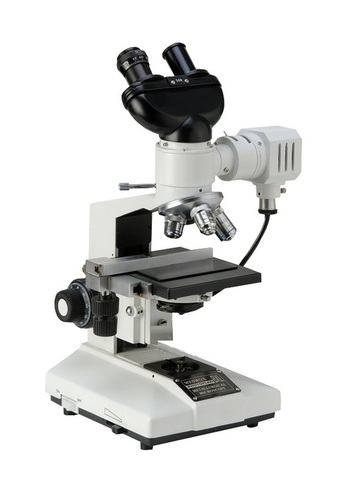

TECHNICAL SPECIFICATIONS:

STAND : Rigid & Heavy single mold aluminum die-cast stand.

OBSERVATION HEAD: Binocular Observation Head inclined at 45o rotatable through 360o with adjustable interpupillary distance and diopeterical focussing arrangement.

EYEPIECE: KEOWA H10x & H15x (PAIRED) anti-fungal, lockable.

NOSEPIECE: Quadruple revolving nosepiece with positive click stops and rubber grip.

OBJECTIVES: KEOWA M10x, M20x & M40x (SL) anti-fungal.

STAGE: Graduated rectangular mechanical stage of size 120X140mm having low positioned co-axial controls.

FOCUSING: Co-axial coarse and fine focussing on ball drive system for smooth operation.

CONDENSER: Focusable abbe two lens type NA 1.25 condenser with iris diaphragm and swing out filter holder with blue filter.

ILLUMINATION: Bright field vertical illuminator with halogen lamp 6V-20W works on variable transformer with adjustable field and aperture Iris diaphragm with slots for dropping coloured filters. Provides excellent bright field in incident illumination of opaque or semi-opaque specimens.

WARRANTY: 2 year warranty Extended warranty can be provide on request.

CERTIFICATION: ISO & European CE Certified.

PACKAGING CONTENTS

Blue, green filters & dust cover.

Styrofoam Box.

KEOWA optics bears Three Years Warranty against any Manufacturing defects.
